Application Views Documentation¶

Overview¶

Pomp's Dispatch Center Application provides seven specialized views designed for different user roles and operational contexts. Each view is optimized for its target users' workflows, displaying relevant data elements and providing appropriate actions based on role permissions.

Platform Summary¶

View	Platform	Technology	Target Users
Customer View	Web	Vue.js 3 + TypeScript	Customer Service Reps, Account Managers
Store View	Web	Vue.js 3 + TypeScript	Store Managers, Operations Staff
Billing View	Web	Vue.js 3 + TypeScript	Finance Team, Billing Clerks
Technician View	Mobile	React Native + TypeScript	Field Service Technicians
Dispatch View	Web	Vue.js 3 + TypeScript	Dispatchers, Operations Managers

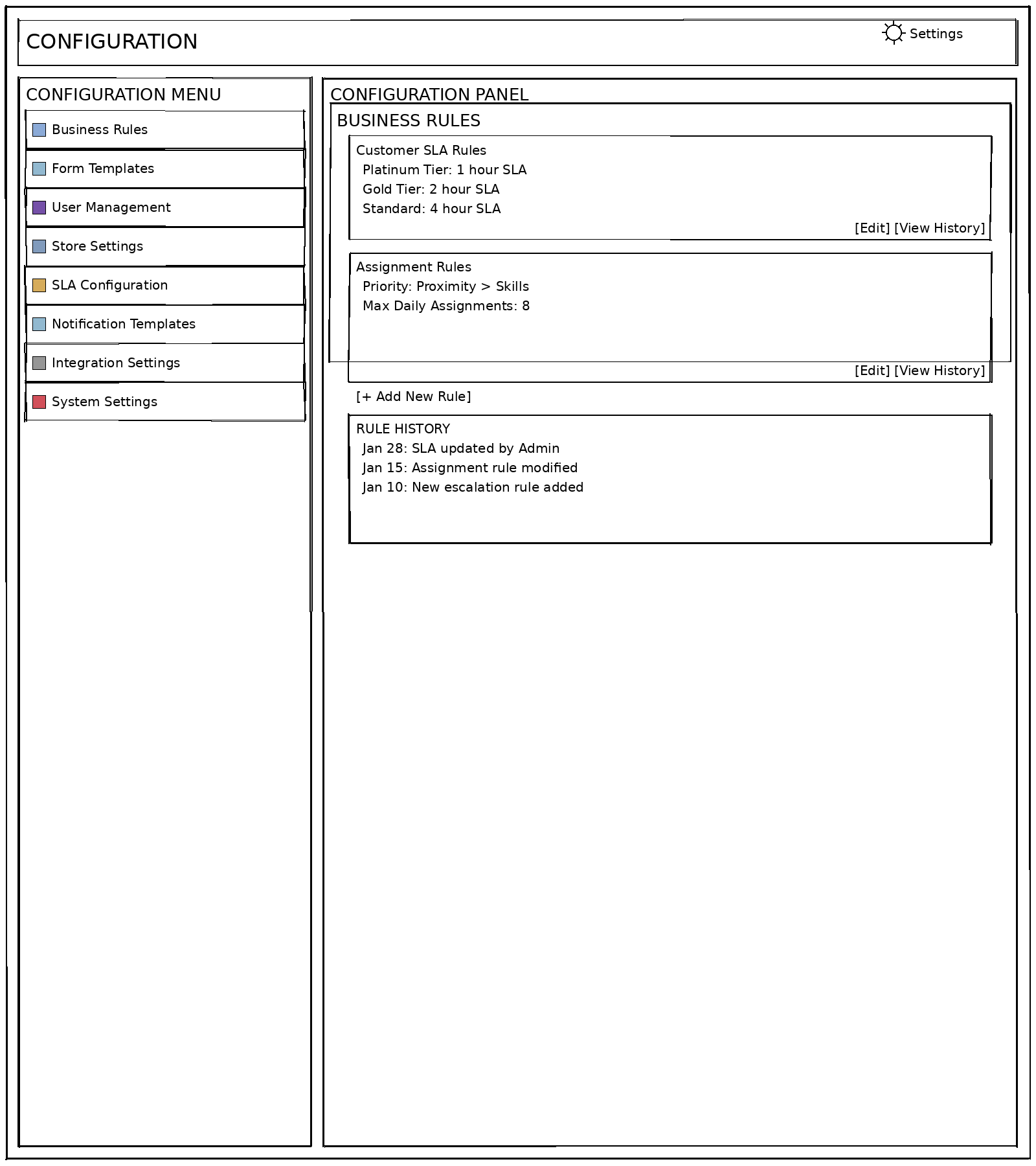

Configuration View	Web	Vue.js 3 + TypeScript	System Administrators

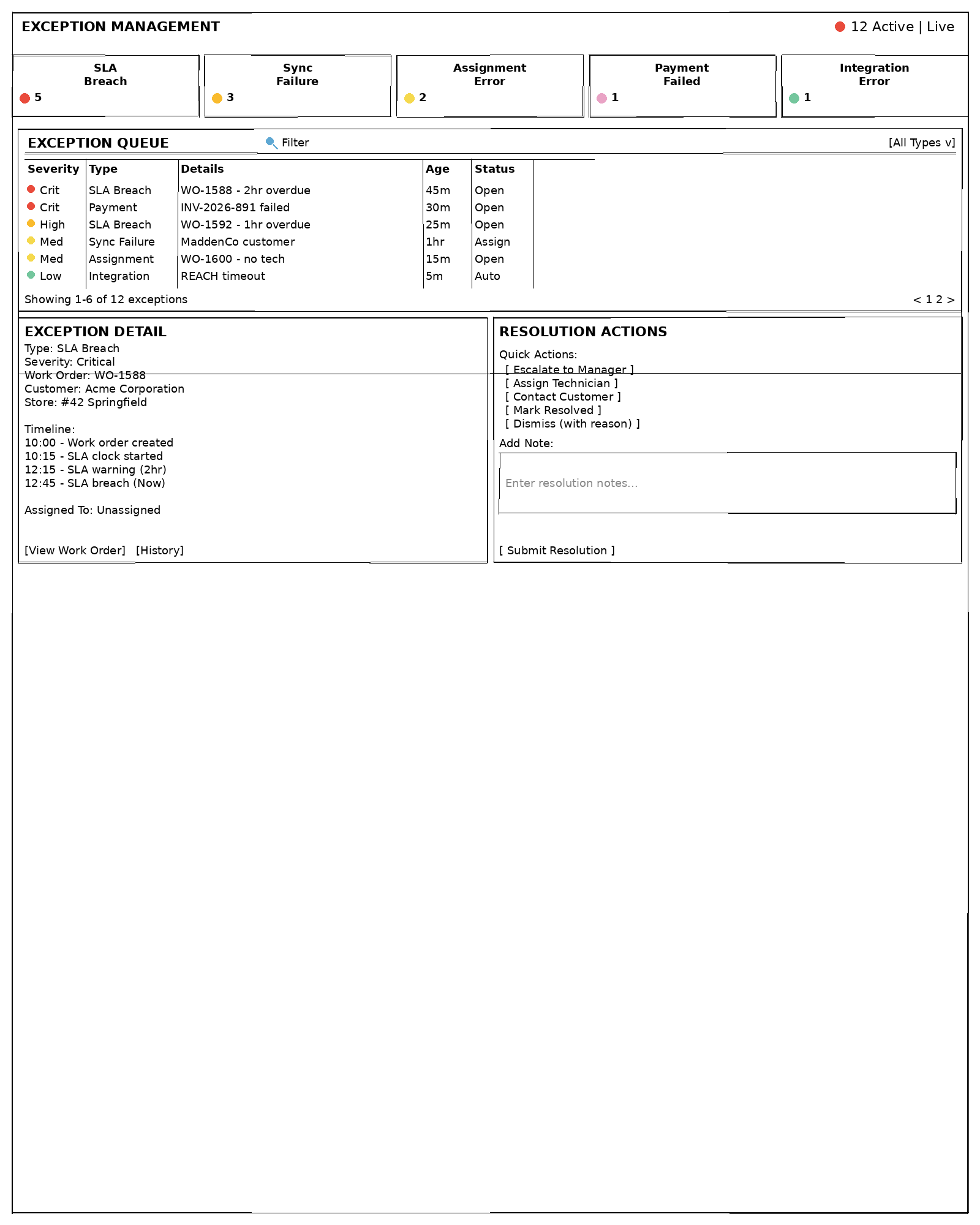

Exception Management	Web	Vue.js 3 + TypeScript	Dispatchers, Operations Managers, System Administrators

View Access By Role¶

View	Admin	Dispatcher	Store Mgr	Technician	Billing	Cust Svc
Customer View	✅	✅	✅	❌	👁️	✅
Store View	✅	✅	✅	❌	👁️	👁️
Billing View	✅	👁️	👁️	❌	✅	👁️
Technician View	❌	❌	❌	✅	❌	❌
Dispatch View	✅	✅	👁️	❌	❌	❌
Configuration	✅	❌	👁️	❌	❌	❌
Exception Mgmt	✅	✅	👁️	❌	❌	❌

✅ = Full Access 👁️ = Read-Only ❌ = No Access

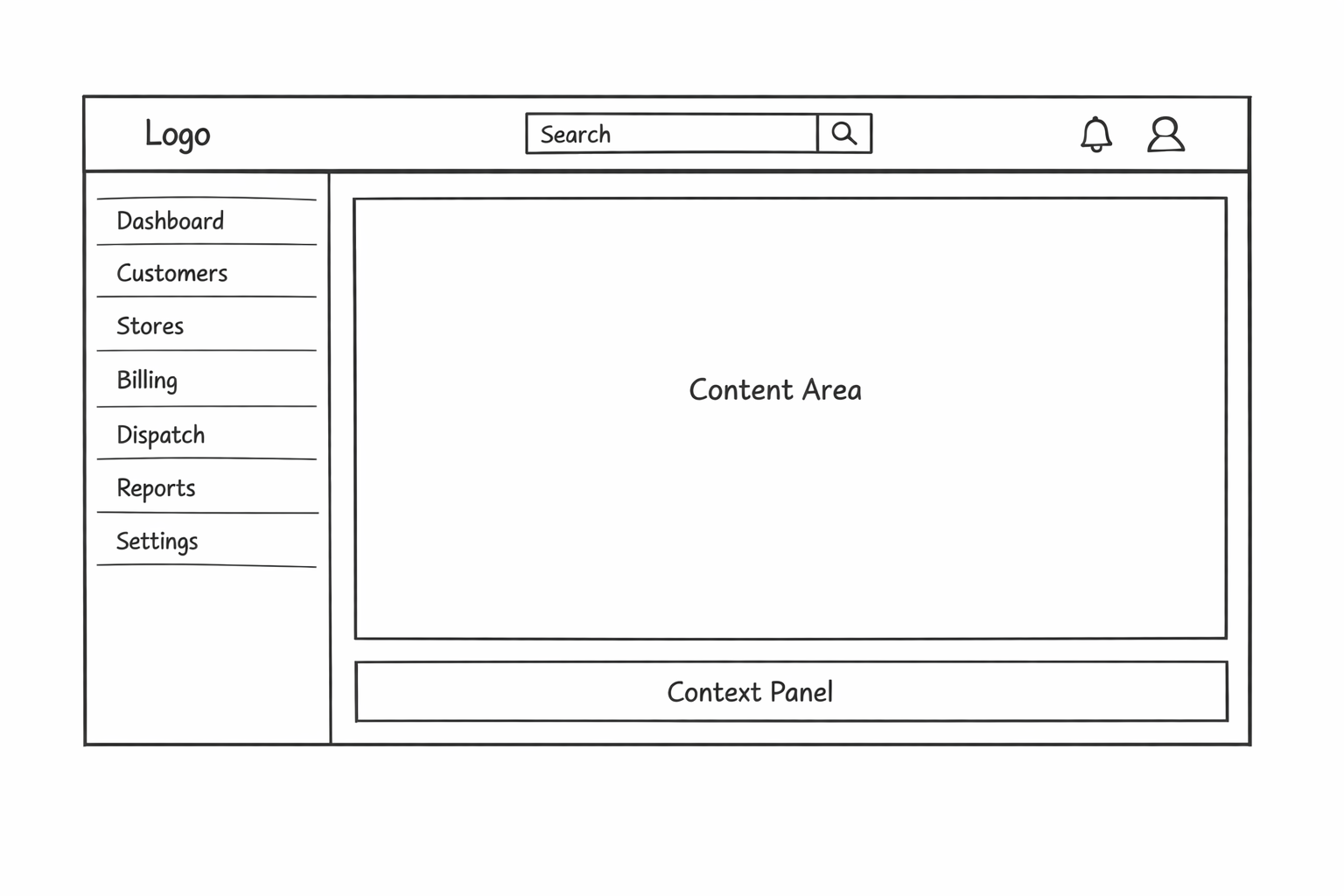

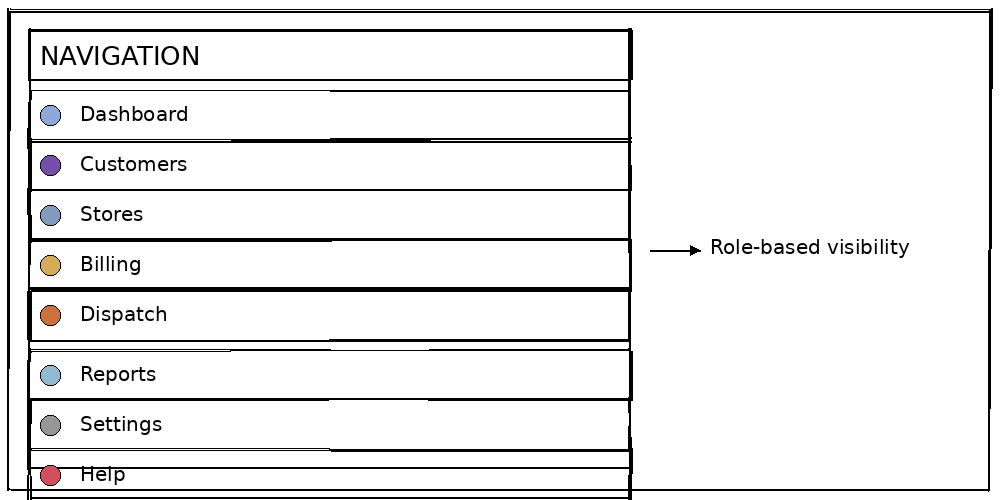

Web Application Navigation Structure

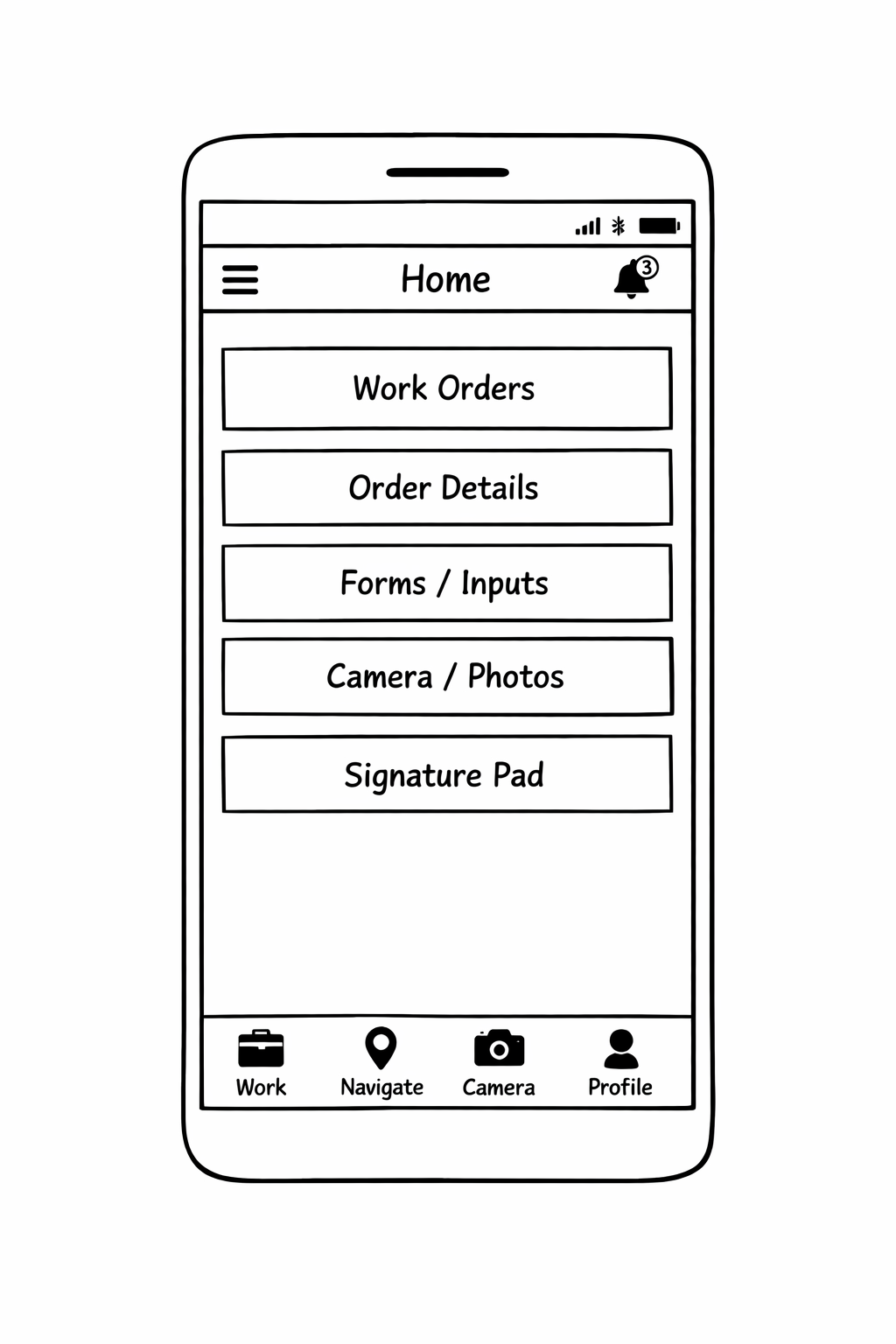

Mobile Application Navigation Structure (Technician View)

Customer View¶

Purpose¶

The Customer View provides a comprehensive interface for managing customer relationships, viewing service history, and coordinating service requests. It serves as the primary interface for customer-facing staff to access all customer-related information.

Target Users¶

Customer Service Representatives - Handle inbound customer calls and inquiries
Account Managers - Manage customer relationships and service agreements

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Language: TypeScript
Styling: Tailwind CSS

Layout Overview¶

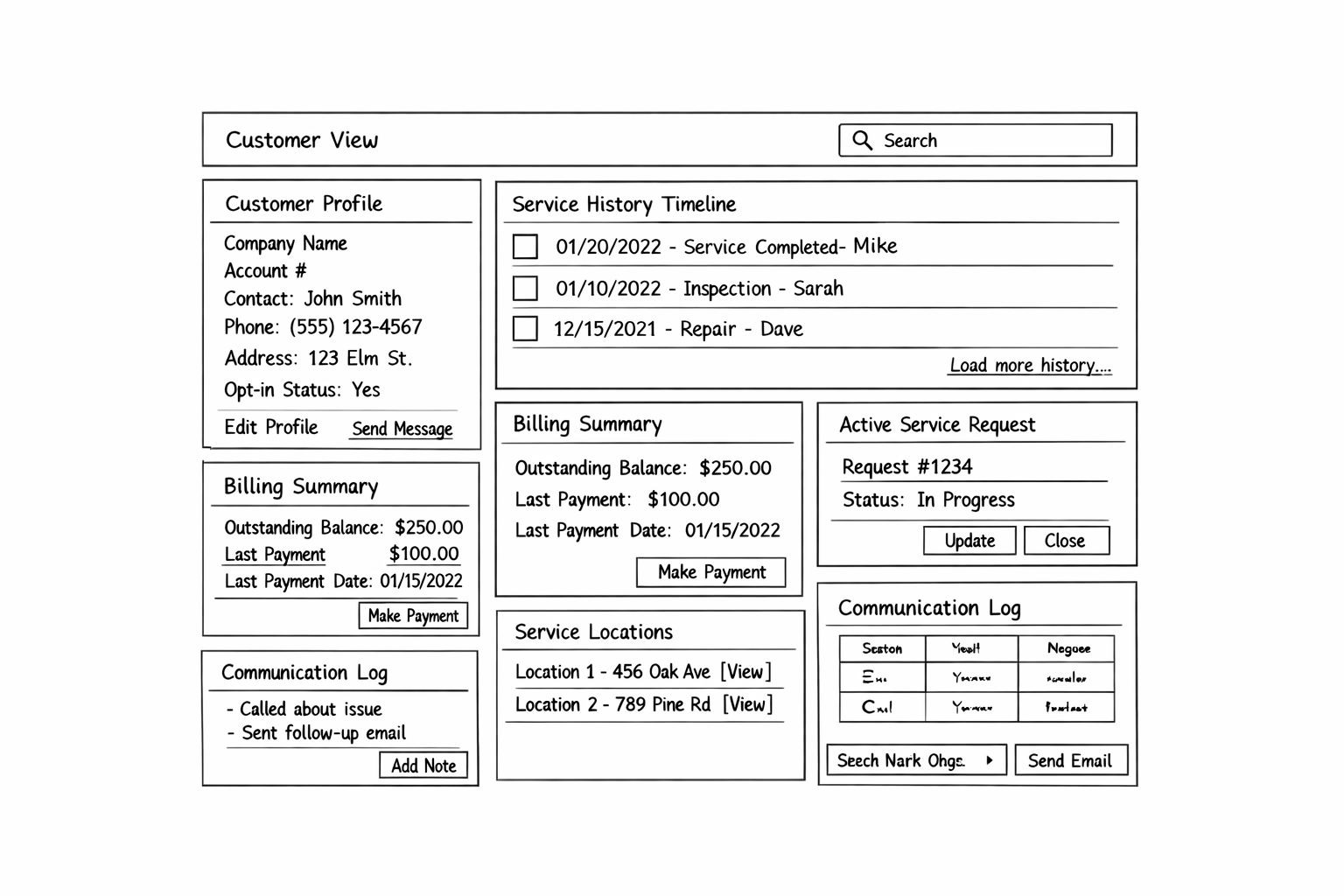

Customer View

Data Elements Displayed¶

Section	Data Elements	Source System	Refresh Rate
Customer Profile	Account number, company name, primary contact, phone, email, address	MaddenCo (SoT)	On-demand
Service Locations	Multiple addresses associated with customer	MaddenCo / Pomp's DB	On-demand
Notification Preferences	SMS opt-in status, email preferences, web notification settings	Pomp's DB	On-demand
Service History	Past work orders, dates, technicians, status, service types	Pomp's DB, REACH	5 minutes
Active Service Requests	Open/pending work orders, priority, assigned tech, ETA	Pomp's DB	Real-time (WebSocket)
Billing Summary	Outstanding balance, last payment, due dates	MaddenCo (SoT)	15 minutes
Communication Log	Calls, emails, notes with timestamps and authors	Pomp's DB	On-demand

Key Actions¶

Action	Description	Required Permission
Create Service Request	Submit new work order for customer	`service_requests.create`
Edit Customer Profile	Update contact information, addresses	`customers.update`
View Invoices	Access billing history and invoice details	`invoices.view`
Send Communication	Email or log phone call to customer	`customer_communication.send`
Update Notification Preferences	Change SMS opt-in, email preferences	`customers.update`
Add Service Location	Register additional customer addresses	`customers.update`

Vue.js Component Structure¶

src/views/customer/
├── CustomerView.vue              # Main view container
├── components/
│   ├── CustomerProfile.vue       # Profile card component
│   ├── CustomerSearch.vue        # Search/filter component
│   ├── ServiceHistory.vue        # Timeline of past services
│   ├── ActiveRequests.vue        # Current work orders panel
│   ├── BillingSummary.vue        # Financial summary card
│   ├── CommunicationLog.vue      # Interaction history
│   ├── ServiceLocations.vue      # Address management
│   └── NotificationPrefs.vue     # Notification settings
├── composables/
│   ├── useCustomer.ts            # Customer data fetching
│   ├── useServiceHistory.ts      # Service history logic
│   └── useCommunication.ts       # Communication actions
└── types/
    └── customer.types.ts         # TypeScript interfaces

Store View¶

Purpose¶

The Store View provides location-specific operational oversight, enabling Store Managers to monitor work orders, track technician performance, and manage store-level operations for their assigned location(s).

Target Users¶

Store Managers - Single-store oversight and local operations
Regional Managers - Multi-store access with store switcher
Operations Staff - Day-to-day operational monitoring

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Language: TypeScript
Styling: Tailwind CSS

Layout Overview¶

Store View

Data Elements Displayed¶

Section	Data Elements	Source System	Refresh Rate
Store Dashboard	Active orders, completed today, pending assignment, SLA %	Pomp's DB	Real-time
Technician Roster	Name, status, current assignment, location, ETA	Pomp's DB, GeoTab	Real-time (30s)
Active Work Orders	Work order #, customer, service type, tech, status, priority	Pomp's DB	Real-time (WebSocket)
Alert Queue	Unacknowledged alerts for this store, escalations	Pomp's DB	Real-time
Store Performance	Completion rate, response time, satisfaction, revenue	Pomp's DB, MaddenCo	15 minutes
Inventory Levels	Parts stock at location, low stock alerts	MaddenCo	Hourly

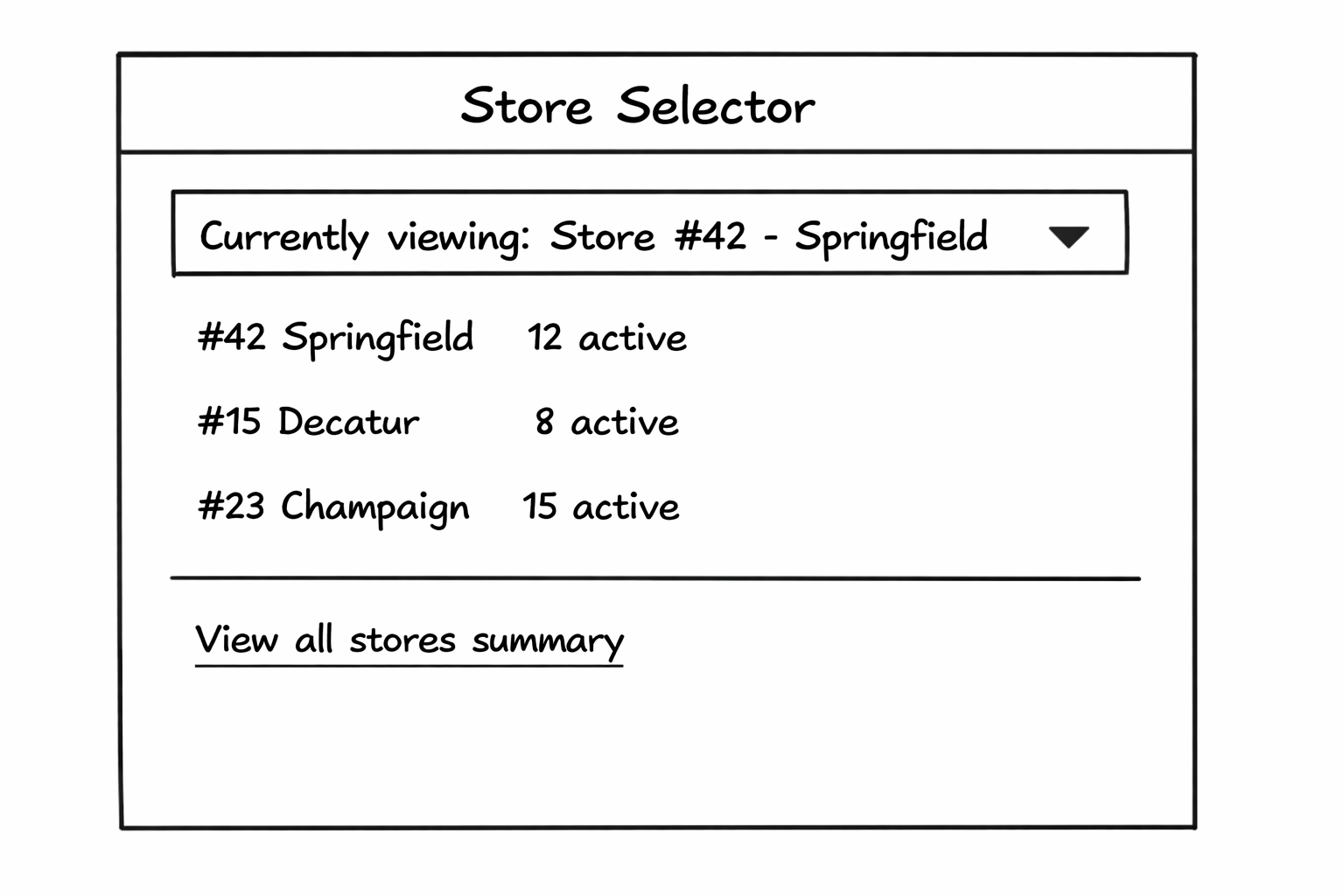

Multi-Store Capability¶

For users with multi-store access (Regional Managers, Area Dispatchers):

Multi-Store Capability View

Key Actions¶

Action	Description	Required Permission
View Work Orders	Access all work orders for the store	`work_orders.view`
Approve Work Order	Approve pending work order requests	`work_orders.approve`
View Technician Location	See real-time GPS location on map	`technician_location.view`
Acknowledge Alert	Mark store alert as acknowledged	`alerts.acknowledge`
View Store Reports	Access store performance metrics	`reporting.store`
Manage Local Inventory	View and update parts inventory	`inventory.view`

Vue.js Component Structure¶

src/views/store/
├── StoreView.vue                 # Main view container
├── components/
│   ├── StoreDashboard.vue        # KPI metrics cards
│   ├── StoreSelector.vue         # Multi-store dropdown
│   ├── TechnicianRoster.vue      # Tech list with status
│   ├── TechnicianMap.vue         # GeoTab GPS integration
│   ├── ActiveWorkOrders.vue      # Work order list
│   ├── AlertQueue.vue            # Store alerts panel
│   ├── StorePerformance.vue      # Performance metrics
│   └── InventoryLevels.vue       # Parts inventory
├── composables/
│   ├── useStore.ts               # Store data fetching
│   ├── useTechnicians.ts         # Technician roster logic
│   └── useStoreAlerts.ts         # Alert management
└── types/
    └── store.types.ts            # TypeScript interfaces

Billing View¶

Purpose¶

The Billing View provides comprehensive invoice management, payment processing, and financial reporting capabilities. It serves as the primary interface for the finance team to manage the billing lifecycle from work order completion to payment collection.

Target Users¶

Billing Clerks - Daily invoice processing and payment management
Finance Team - Financial reporting and reconciliation
Accounts Receivable - Collections and payment tracking

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Language: TypeScript
Styling: Tailwind CSS

Layout Overview¶

Billing View

Data Elements Displayed¶

Section	Data Elements	Source System	Refresh Rate
Billing Dashboard	Invoice counts by status, amounts	Pomp's DB	5 minutes
Invoice List	Invoice #, customer, amount, status, sync status	Pomp's DB	On-demand
Invoice Detail	Line items (labor, parts, fees), tax, total, attachments, signature	Pomp's DB	On-demand
MaddenCo Sync Status	Last sync time, pending count, discrepancies	MaddenCo Proxy	5 minutes
Revenue Summary	Daily, weekly, monthly revenue totals	Pomp's DB, MaddenCo	15 minutes
Customer Billing Info	Payment terms, credit limit, billing address	MaddenCo (SoT)	On-demand

Invoice Workflow States¶

flowchart LR
    draft["Draft
    Created from WO"]
    pending["Pending Review
    Awaiting approval"]
    finalized["Finalized
    Sent to MaddenCo"]
    paid["Paid
    Payment received"]

    draft --> pending
    pending --> finalized
    finalized --> paid

Key Actions¶

Action	Description	Required Permission
Generate Invoice	Create invoice from completed work order	`invoices.create`
Edit Invoice	Modify draft/pending invoices	`invoices.update`
Finalize Invoice	Mark invoice as ready for billing	`invoices.finalize`
Process Payment	Record customer payment	`payments.process`
Sync to MaddenCo	Push invoice to MaddenCo ERP	`invoices.sync`
Export Invoices	Download invoice data/reports	`invoices.export`
View Revenue Reports	Access financial analytics	`reporting.billing`

Vue.js Component Structure¶

src/views/billing/
├── BillingView.vue               # Main view container
├── components/
│   ├── BillingDashboard.vue      # KPI metrics cards
│   ├── InvoiceList.vue           # Invoice table with filters
│   ├── InvoiceDetail.vue         # Invoice detail panel
│   ├── InvoiceLineItems.vue      # Line item breakdown
│   ├── PaymentForm.vue           # Payment processing form
│   ├── MaddenCoSync.vue          # Sync status panel
│   ├── RevenueSummary.vue        # Revenue metrics
│   └── InvoiceGenerator.vue      # Create from work order
├── composables/
│   ├── useInvoices.ts            # Invoice data fetching
│   ├── usePayments.ts            # Payment processing
│   └── useMaddenCoSync.ts        # MaddenCo integration
└── types/
    └── billing.types.ts          # TypeScript interfaces

Technician View¶

Purpose¶

The Technician View is a mobile-first application designed for field service technicians to manage their daily work orders, update job status, capture documentation, and synchronize data with the central system. It operates with an offline-first architecture to ensure functionality in areas with limited connectivity.

Target Users¶

Field Service Technicians - Primary daily users for work execution

Platform & Technology¶

Platform: Mobile Application (iOS & Android)
Framework: React Native with TypeScript
State Management: Redux Toolkit / Zustand
Local Storage: SQLite (react-native-sqlite-storage)
Offline Sync: Background sync with conflict resolution

Layout Overview¶

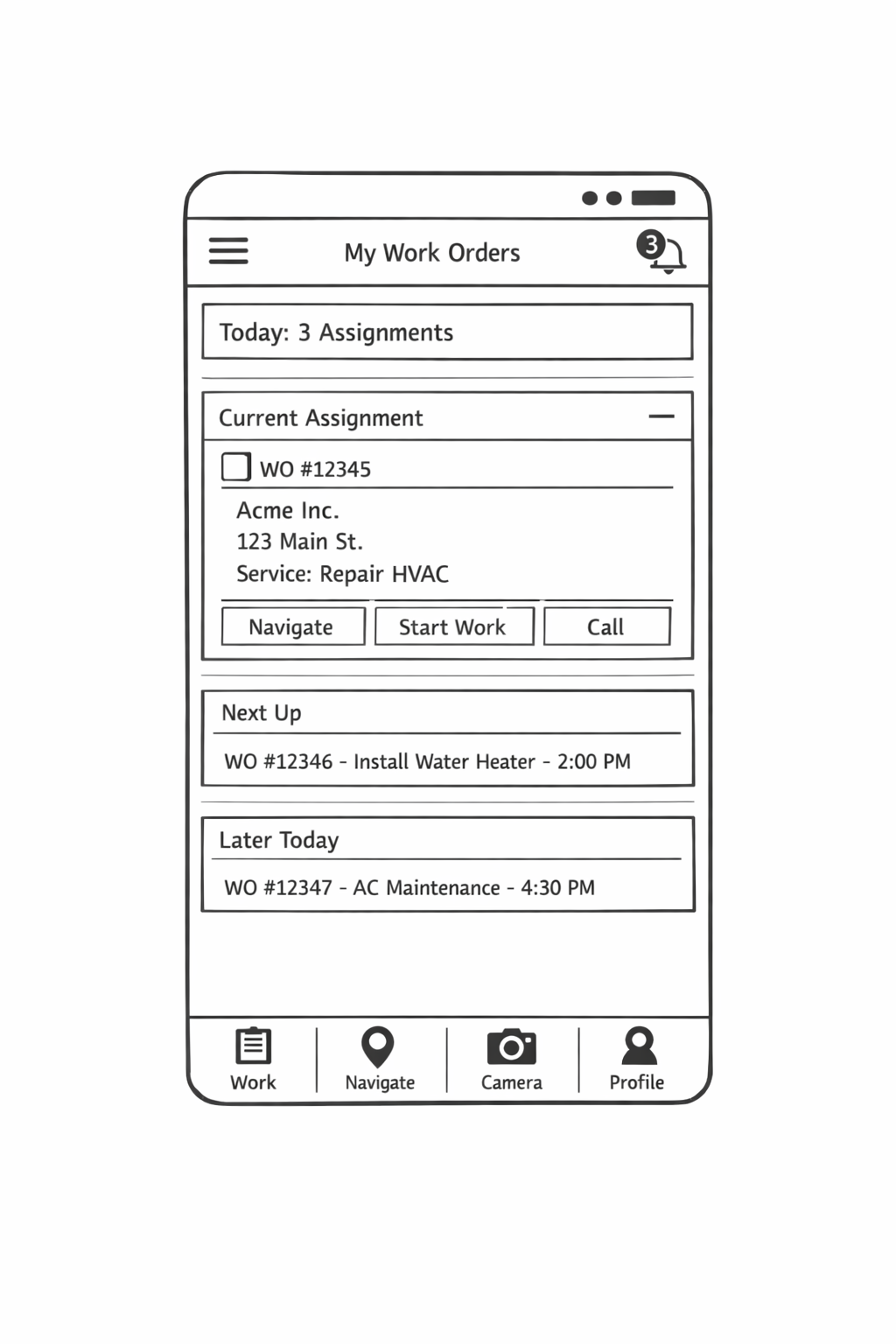

Technician Home View

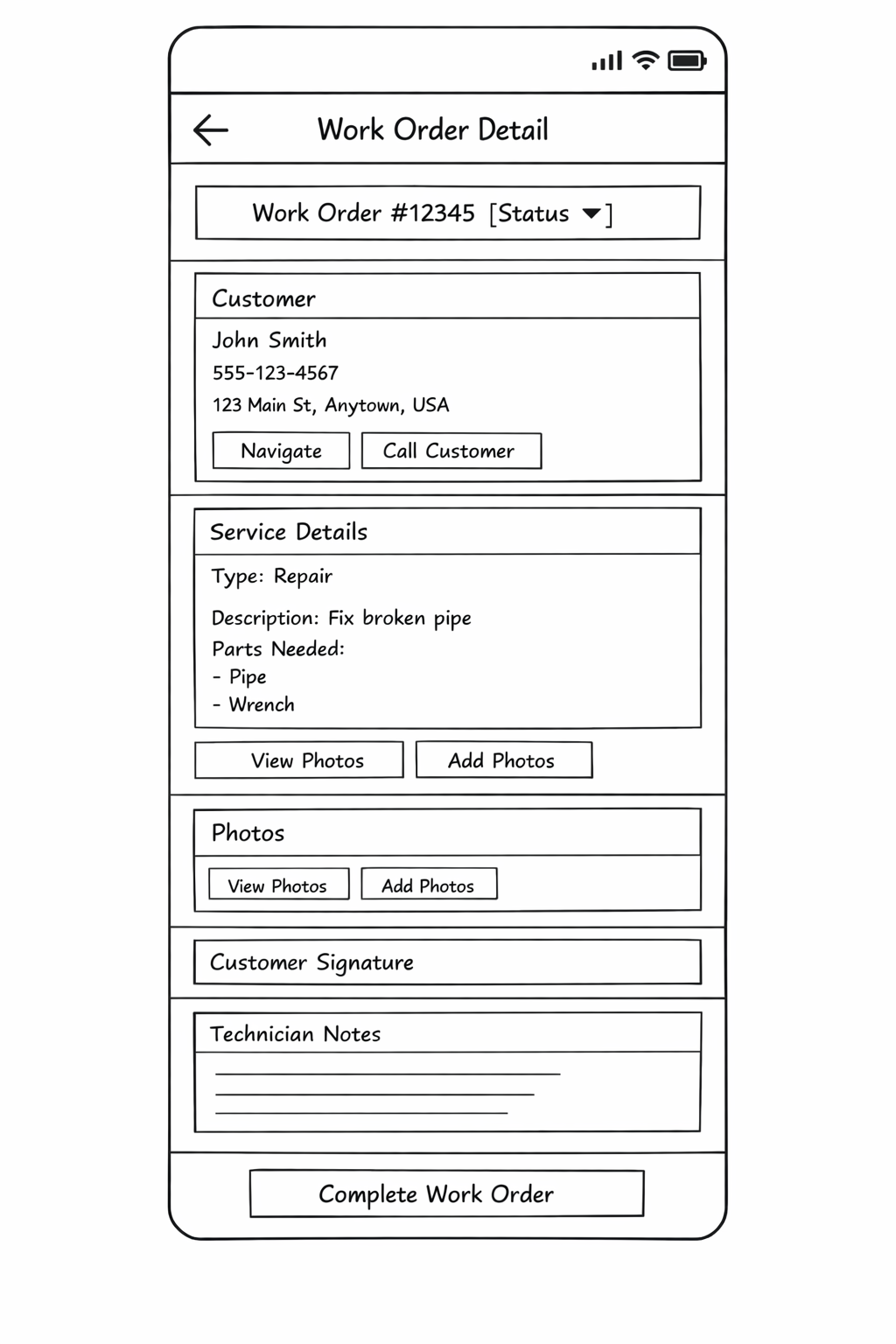

Work Order Detail Screen¶

Work Order Detail Screen

Data Elements Displayed¶

Section	Data Elements	Source	Offline Available
Work Order List	WO#, customer, address, time, service type, priority	Pomp's DB → SQLite	✅ Yes
Work Order Detail	Full service description, parts list, notes	Pomp's DB → SQLite	✅ Yes
Customer Info	Name, contact, phone, address	Pomp's DB → SQLite	✅ Yes
Status Updates	Current status, status history	Pomp's DB → SQLite	✅ Yes (queued)
Photos	Before/after photos, timestamps	Local → Azure Blob	✅ Yes (queued)
Signature	Customer signature capture	Local → Pomp's DB	✅ Yes (queued)
GPS Location	Current position, route to customer	GeoTab / Device GPS	✅ Yes
Time Tracking	Clock in/out, travel time, work time	Local → Pomp's DB	✅ Yes (queued)

Offline-First Architecture¶

flowchart TB
    mobile["Mobile
    UI"]
    sqlite["SQLite
    Local DB"]
    sync["Sync
    Service"]
    network["Network Check
    (Connectivity)"]
    online["ONLINE
    • Sync now
    • Push changes
    • Pull updates"]
    offline["OFFLINE
    • Queue ops
    • Store local
    • Retry later"]
    api["Pomp's API
    (Azure)"]

    mobile <--> sqlite
    sqlite <--> sync
    sync --> network
    network --> online
    network --> offline
    online --> api

Technician Status Workflow¶

flowchart LR
    available[Available]
    assigned[Assigned]
    enroute[En Route]
    arrived[Arrived]
    inprogress[In Progress]
    complete[Complete]

    available --> assigned
    assigned --> enroute
    enroute --> arrived
    arrived --> inprogress
    inprogress --> complete

Key Actions¶

Action	Description	Offline Support
Update Status	Change work order status	✅ Queued
Navigate	Open maps to customer location	✅ Cached maps
Call Customer	Initiate phone call	❌ Requires network
Capture Photo	Take before/after photos	✅ Stored locally
Scan Barcode	Scan parts for inventory	✅ Local lookup
Collect Signature	Digital signature capture	✅ Stored locally
Add Notes	Technician notes and comments	✅ Stored locally
Complete Work Order	Submit completed work	✅ Queued
Clock In/Out	Time tracking	✅ Stored locally

React Native Component Structure¶

src/
├── screens/
│   ├── WorkOrderListScreen.tsx     # Daily assignment list
│   ├── WorkOrderDetailScreen.tsx   # Full work order details
│   ├── NavigationScreen.tsx        # Maps integration
│   ├── CameraScreen.tsx            # Photo capture
│   ├── SignatureScreen.tsx         # Signature pad
│   └── ProfileScreen.tsx           # Technician profile
├── components/
│   ├── WorkOrderCard.tsx           # Work order summary card
│   ├── StatusSelector.tsx          # Status dropdown
│   ├── PhotoCapture.tsx            # Camera component
│   ├── SignaturePad.tsx            # Signature component
│   ├── PartsChecklist.tsx          # Parts verification
│   ├── OfflineIndicator.tsx        # Network status
│   └── SyncStatus.tsx              # Sync queue status
├── services/
│   ├── syncService.ts              # Background sync logic
│   ├── offlineStorage.ts           # SQLite operations
│   ├── locationService.ts          # GPS tracking
│   └── apiService.ts               # API client
├── hooks/
│   ├── useWorkOrders.ts            # Work order state
│   ├── useOfflineSync.ts           # Sync management
│   └── useLocation.ts              # GPS hooks
└── types/
    └── workOrder.types.ts          # TypeScript interfaces

Dispatch View¶

Purpose¶

The Dispatch View is the central command center for real-time dispatch operations. It provides dispatchers with a comprehensive view of all work orders, technician locations, and resources to efficiently assign and manage field service operations across 200+ stores.

Target Users¶

Dispatchers - Real-time work order assignment and coordination
Operations Managers - Oversight and performance monitoring
Central Dispatch Team - Multi-region coordination

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Language: TypeScript
Styling: Tailwind CSS
Real-time: WebSocket connections for live updates
Maps: Integration with mapping service for technician locations

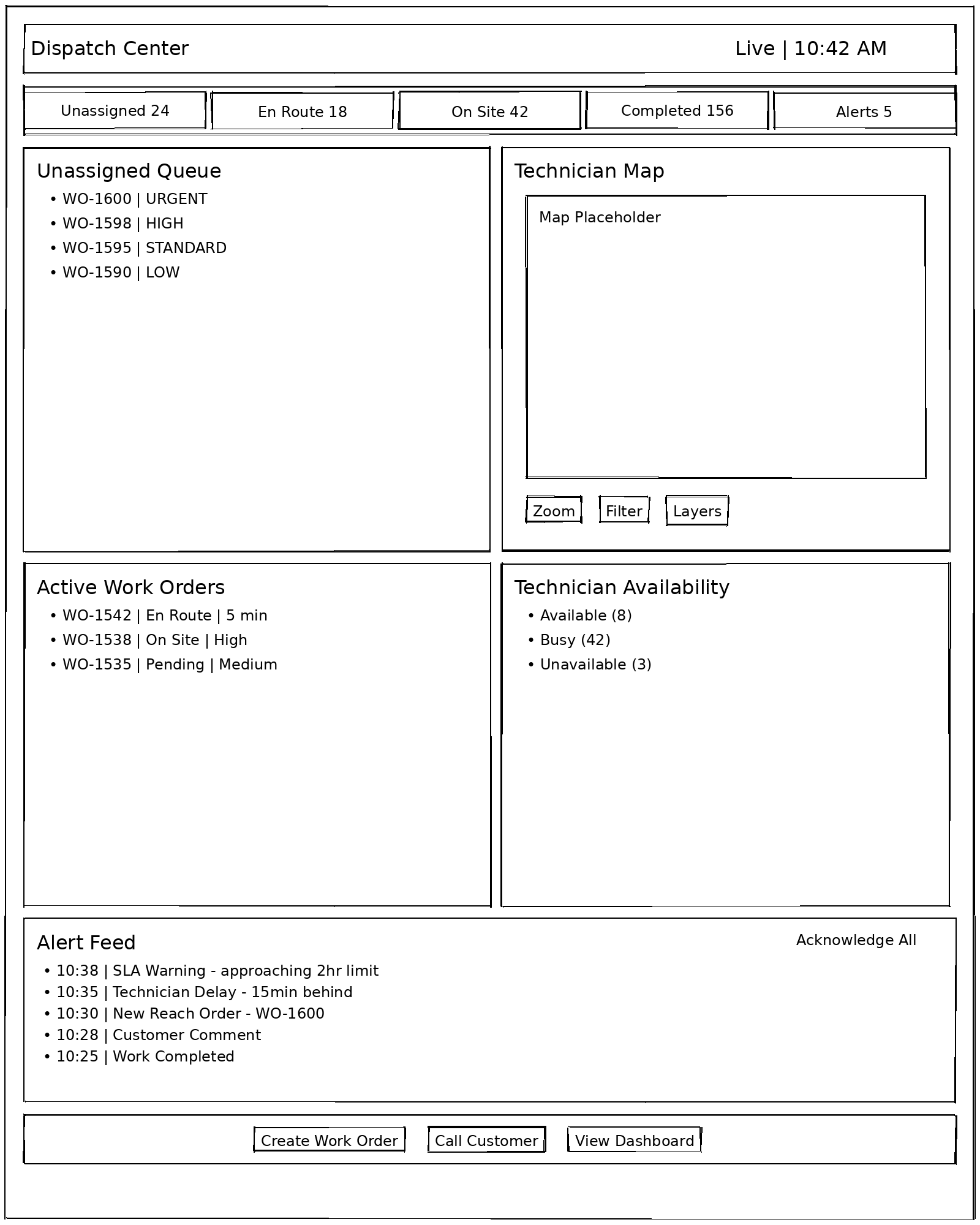

Layout Overview¶

Dispatch Center

Data Elements Displayed¶

Section	Data Elements	Source System	Refresh Rate
Status Summary	Counts by status (unassigned, en route, on site, completed, alerts)	Pomp's DB	Real-time (WebSocket)
Unassigned Queue	Work orders awaiting assignment, priority, customer, location, age	Pomp's DB, REACH	Real-time
Technician Map	Real-time GPS locations, route to customer, geofences	GeoTab	30 seconds
Technician Availability	Status (available, busy, unavailable), current assignment, skills	Pomp's DB, Dayforce	Real-time
Active Work Orders	In-progress work, tech assignment, status, ETA, customer	Pomp's DB	Real-time
Alert Feed	SLA warnings, delays, new orders, comments, completions	Pomp's DB	Real-time
REACH Inbound	New work orders from REACH portal	REACH Proxy	30 seconds (polling)

Assignment Workflow¶

flowchart TB
    unassigned[Unassigned Work Order]
    assign[Assign Technician]
    notified[Technician Notified]
    suggestions["Smart Suggestions
    • Proximity
    • Skills
    • Workload
    • Schedule"]
    push["Push Notification + SMS
    (Genesys)"]
    customer["Customer Notified
    (ETA)"]
    reach["REACH Updated
    (if source)"]

    unassigned --> assign
    assign --> notified
    assign --> suggestions
    notified --> push
    push --> customer
    customer --> reach

Key Actions¶

Action	Description	Required Permission
Assign Technician	Assign tech to unassigned work order	`technician_assignment.create`
Reassign Work Order	Change technician assignment	`technician_assignment.update`
Create Work Order	Create new service request	`service_requests.create`
View Technician Details	See tech skills, schedule, history	`technicians.view`
Contact Customer	Initiate call or send notification	`customer_communication.send`
Acknowledge Alert	Mark alert as seen	`alerts.acknowledge`
View Live Map	Access real-time technician locations	`technician_location.view`
Send Customer ETA	Notify customer of technician ETA	`customer_communication.send`

Real-Time Features¶

Feature	Technology	Update Frequency
Work Order Status	WebSocket (SignalR)	Instant
Technician Location	GeoTab API + WebSocket	30 seconds
Alert Feed	WebSocket (SignalR)	Instant
Unassigned Queue	WebSocket + REACH Polling	Instant / 30 sec
Dashboard Metrics	WebSocket	5 seconds

Vue.js Component Structure¶

src/views/dispatch/
├── DispatchView.vue              # Main view container
├── components/
│   ├── DispatchDashboard.vue     # Status summary cards
│   ├── UnassignedQueue.vue       # Work order queue
│   ├── TechnicianMap.vue         # GeoTab map integration
│   ├── TechnicianList.vue        # Available/busy tech list
│   ├── ActiveWorkOrders.vue      # In-progress work panel
│   ├── AlertFeed.vue             # Real-time alert stream
│   ├── AssignmentModal.vue       # Tech assignment dialog
│   ├── WorkOrderCard.vue         # Work order summary
│   └── SmartSuggestions.vue      # AI-powered tech suggestions
├── composables/
│   ├── useDispatch.ts            # Dispatch state management
│   ├── useRealTimeUpdates.ts     # WebSocket subscriptions
│   ├── useTechnicianMap.ts       # Map integration
│   └── useAlerts.ts              # Alert management
└── types/
    └── dispatch.types.ts         # TypeScript interfaces

Shared Components¶

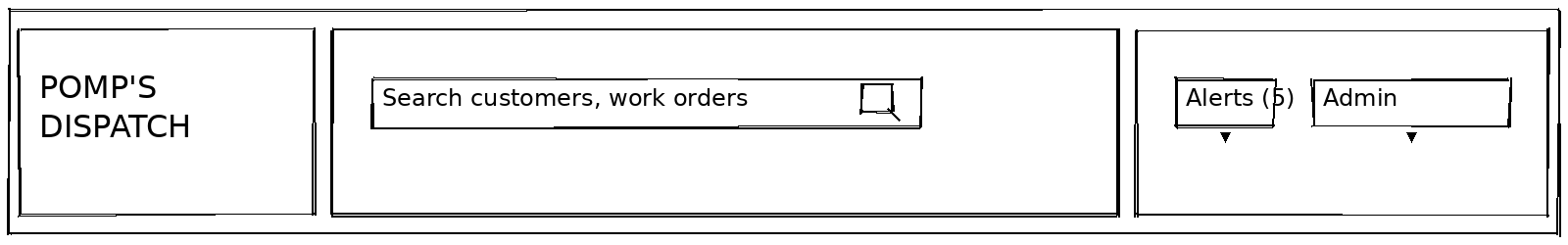

Header Component¶

Dispatch Header

Elements: - Logo/branding - Global search (customers, work orders, invoices) - Notification bell with unread count - User avatar with dropdown menu (profile, settings, logout)

Sidebar Navigation

Features: - Role-based menu visibility - Collapsible for more screen space - Active state highlighting - Badge counts for pending items

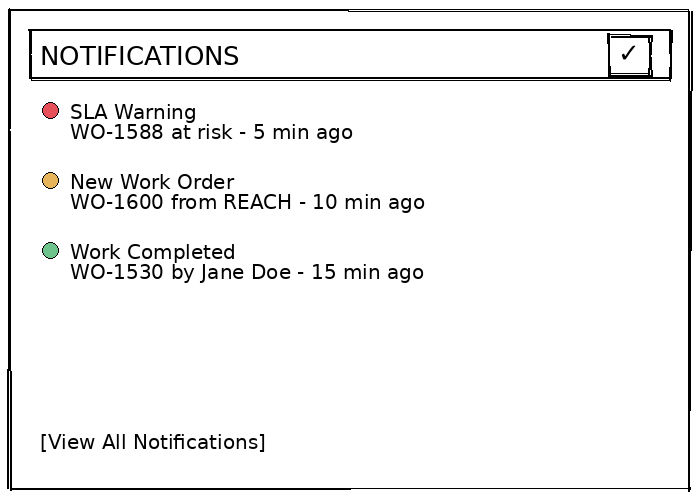

Notification Panel¶

Notification Panel

UI/UX Standards¶

Design System¶

Element	Standard	Implementation
Colors	Pomp's brand palette	Tailwind CSS config
Typography	Inter font family	14px base, 1.5 line height
Spacing	4px base unit	Tailwind spacing scale
Border Radius	8px default	Tailwind rounded-lg
Shadows	Subtle elevation	Tailwind shadow-sm/md
Icons	Heroicons	Consistent icon set

Responsive Breakpoints¶

Breakpoint	Width	Target Devices
`sm`	640px	Mobile phones
`md`	768px	Tablets
`lg`	1024px	Small laptops
`xl`	1280px	Desktops
`2xl`	1536px	Large monitors

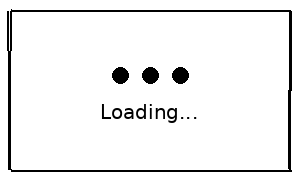

Loading States¶

Loading State

Skeleton loaders for content areas
Spinner for actions/buttons
Progress bars for uploads
Toast notifications for feedback

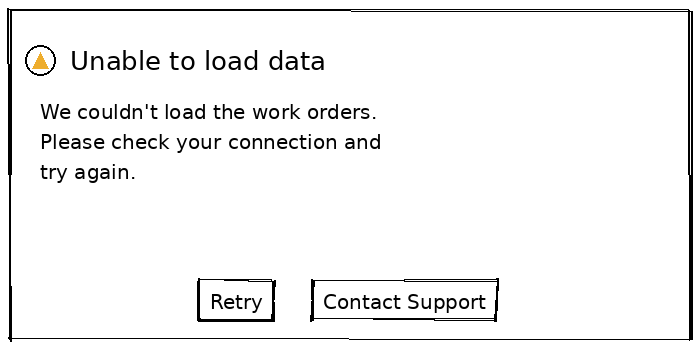

Error States¶

Error States

Data Refresh & Real-Time Updates¶

Refresh Strategy by View¶

View	Primary Refresh	Secondary Refresh	Real-Time Events
Customer View	On-demand	5 min polling	Active request updates
Store View	Real-time	30 sec map refresh	Work order status, alerts
Billing View	On-demand	15 min polling	Payment confirmations
Technician View	Background sync	On network change	Push notifications
Dispatch View	Real-time (WebSocket)	30 sec REACH poll	All dispatch events

WebSocket Events¶

Event	Payload	Subscribers
`workorder.created`	Work order details	Dispatch View, Store View
`workorder.updated`	Status, assignment changes	All views
`technician.status`	Tech ID, new status, location	Dispatch View, Store View
`alert.created`	Alert details	Dispatch View, Store View
`payment.received`	Payment details	Billing View
`reach.neworder`	REACH work order	Dispatch View

Conflict Resolution¶

For offline-capable views (Technician View):

Conflict Type	Resolution Strategy
Status Update	Last-write-wins with timestamp
Photo Upload	Merge (add all photos)
Notes/Comments	Merge (append all)
Work Order Reassignment	Server wins, notify technician

Accessibility Requirements¶

WCAG 2.1 AA Compliance¶

Requirement	Implementation
Color Contrast	4.5:1 minimum for text
Keyboard Navigation	All actions accessible via keyboard
Focus Indicators	Visible focus rings on all interactive elements
Screen Reader	ARIA labels and landmarks
Font Scaling	Support up to 200% zoom
Motion	Respect `prefers-reduced-motion`

Keyboard Shortcuts (Web Views)¶

Shortcut	Action
`Ctrl + K`	Global search
`Ctrl + N`	Create new work order
`Ctrl + /`	Keyboard shortcut help
`Esc`	Close modal/panel
`Tab`	Navigate forward
`Shift + Tab`	Navigate backward

Configuration View¶

Purpose¶

The Configuration View provides system administrators with a centralized interface for managing application settings, business rules, form templates, user accounts, and integration configurations. This view enables non-developer modification of system behavior without code changes.

Target Users¶

System Administrators - Full configuration access
Store Managers - Read-only access to store-specific settings

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Language: TypeScript
Styling: Tailwind CSS

Layout Overview¶

Configuration

Configuration Sections¶

Section	Description	Data Source
Business Rules	SLA definitions, assignment logic, escalation rules	Azure SQL + Rules Engine
Form Templates	Dynamic form definitions for work orders	Azure SQL
User Management	User accounts, role assignments, permissions	Azure AD + Pomp's DB
Store Settings	Store-specific configurations, service areas	Azure SQL
SLA Configuration	Customer tier SLAs, response time targets	Azure SQL
Notification Templates	SMS, email, push notification templates	Azure SQL
Integration Settings	API endpoints, sync schedules, credentials	Azure Key Vault + SQL
System Settings	Application-wide settings, feature flags	Azure SQL

Key Actions¶

Action	Description	Required Permission
Edit Business Rules	Modify rule definitions	`configuration.rules.update`
Create Form Template	Design new dynamic forms	`configuration.forms.create`
Manage Users	Create/edit user accounts, assign roles	`users.manage`
Configure SLAs	Define SLA thresholds by customer tier	`configuration.sla.update`
Edit Notification Templates	Modify message templates	`configuration.notifications.update`
View Audit History	See configuration change history	`configuration.audit.view`

Vue.js Component Structure¶

src/views/configuration/
├── ConfigurationView.vue           # Main view container
├── components/
│   ├── ConfigurationMenu.vue       # Left navigation menu
│   ├── BusinessRulesPanel.vue      # Rules editor
│   ├── RuleEditor.vue              # Individual rule editor
│   ├── FormTemplatesPanel.vue      # Form template list

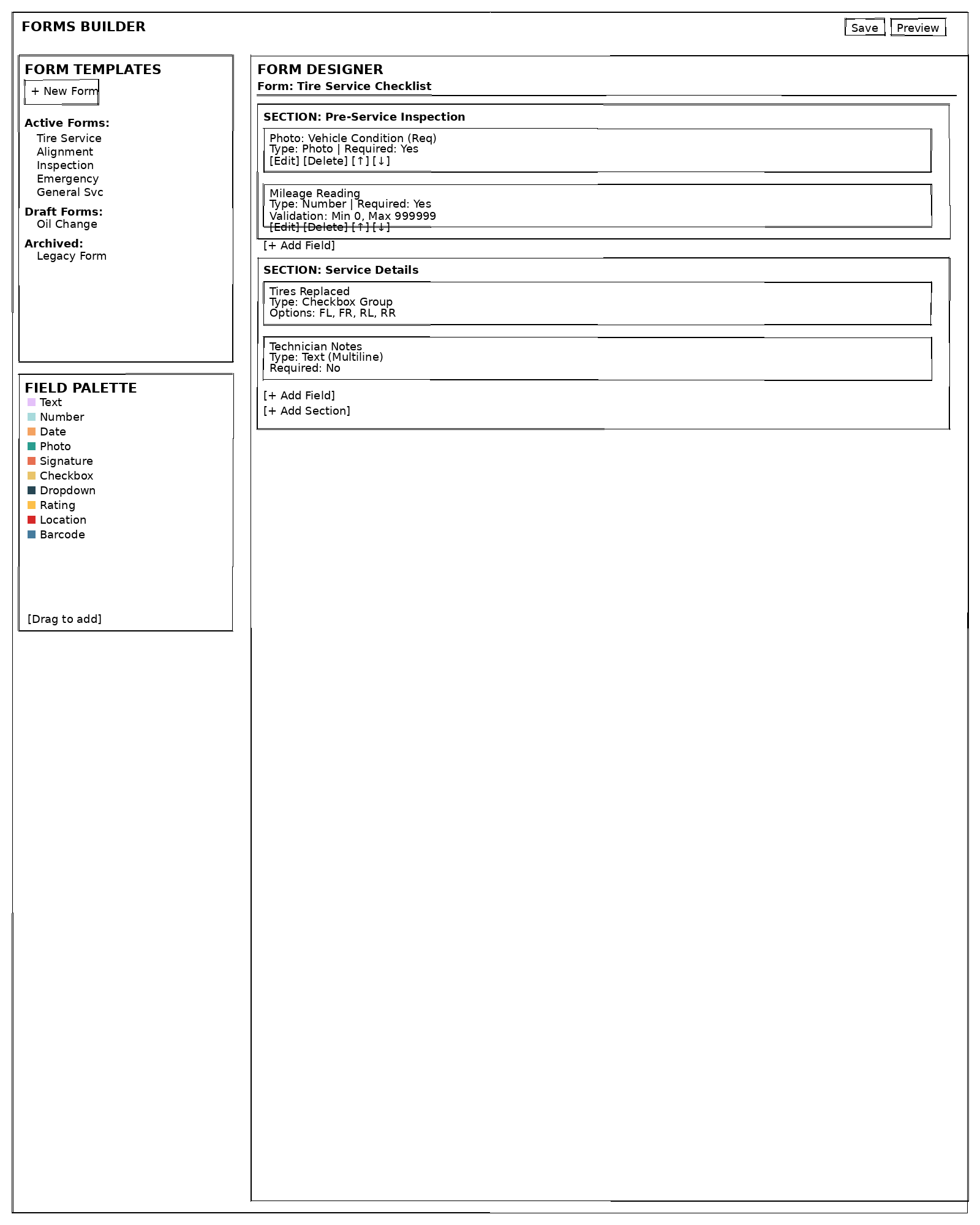

│   ├── FormDesigner.vue            # Visual form builder
│   ├── UserManagementPanel.vue     # User list and editor
│   ├── StoreSettingsPanel.vue      # Store configuration
│   ├── SLAConfigPanel.vue          # SLA definitions
│   ├── NotificationTemplates.vue   # Template editor
│   ├── IntegrationSettings.vue     # API configurations
│   └── AuditHistory.vue            # Change log viewer
├── composables/
│   ├── useConfiguration.ts         # Configuration state
│   ├── useBusinessRules.ts         # Rules management
│   └── useAuditHistory.ts          # Audit log queries
└── types/
    └── configuration.types.ts      # TypeScript interfaces

Exception Management View¶

Purpose¶

The Exception Management View provides a centralized interface for identifying, tracking, and resolving operational exceptions such as SLA breaches, sync failures, assignment errors, and integration issues. It enables proactive exception handling with configurable escalation workflows.

Target Users¶

Dispatchers - Handle dispatch-related exceptions
Operations Managers - Oversight and escalation
System Administrators - Technical exception resolution

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Language: TypeScript
Styling: Tailwind CSS
Real-time: WebSocket (SignalR) for live exception feed

Layout Overview¶

Exception Management

Exception Types¶

Type	Severity	Description	Auto-Resolution
SLA Breach	Critical/High	Work order exceeds SLA threshold	No - Manual
Sync Failure	Medium	Data sync between systems failed	Yes - Retry queue
Assignment Error	Medium	Unable to auto-assign technician	No - Manual
Payment Failure	Critical	Payment processing failed	No - Manual
Integration Error	Low/Medium	External API failure	Yes - Circuit breaker
Data Discrepancy	Low	Mismatch between systems	Yes - Reconciliation
Photo Upload Failure	Low	Photo failed to upload	Yes - Retry queue

Data Elements Displayed¶

Section	Data Elements	Source	Refresh
Exception Summary	Counts by type and severity	Pomp's DB	Real-time
Exception Queue	Exception list with filtering	Pomp's DB	Real-time
Exception Detail	Full exception context, timeline	Pomp's DB	On-demand
Resolution Actions	Available actions based on type	Rules Engine	Static
Audit Trail	Resolution history, notes	Pomp's DB	On-demand

Key Actions¶

Action	Description	Required Permission
View Exception	View exception details	`exceptions.view`
Assign Exception	Assign to team member	`exceptions.assign`
Escalate	Escalate to manager/team	`exceptions.escalate`
Resolve	Mark exception as resolved	`exceptions.resolve`
Dismiss	Dismiss with documented reason	`exceptions.dismiss`
Retry	Retry failed operation	`exceptions.retry`

Escalation Workflow¶

flowchart LR
    created[Created]
    open[Open]
    assigned[Assigned]
    resolved[Resolved]
    escalated[Escalated]
    dismissed[Dismissed]

    created --> open
    open --> assigned
    assigned --> resolved
    open --> escalated
    assigned --> dismissed

Vue.js Component Structure¶

src/views/exceptions/
├── ExceptionManagementView.vue     # Main view container
├── components/
│   ├── ExceptionSummary.vue         # Summary cards by type
│   ├── ExceptionQueue.vue           # Filterable exception list
│   ├── ExceptionDetail.vue          # Exception detail panel
│   ├── ResolutionActions.vue        # Action buttons panel
│   ├── ExceptionTimeline.vue        # Event timeline
│   ├── ExceptionFilters.vue         # Filter controls
│   └── ResolutionForm.vue           # Resolution submission
├── composables/
│   ├── useExceptions.ts             # Exception state
│   ├── useExceptionActions.ts       # Action handlers
│   └── useExceptionFilters.ts       # Filter logic
└── types/
    └── exception.types.ts           # TypeScript interfaces

Forms Builder¶

Purpose¶

The Forms Builder provides a visual interface for creating and managing dynamic form templates used in work order documentation. It enables non-technical users to design forms with various field types, validation rules, and conditional logic without coding.

Target Users¶

System Administrators - Create and manage all form templates
Store Managers - Create store-specific form variants (with approval)

Platform & Technology¶

Platform: Web Application
Framework: Vue.js 3 with Composition API
Form Library: FormKit (Vue.js form library)
Language: TypeScript
Storage: Azure SQL (JSON schema storage)

Layout Overview¶

Forms Builder

Field Types¶

Field Type	Description	Mobile Support	Offline
Text	Single or multi-line text input	✅	✅
Number	Numeric input with min/max	✅	✅
Date/Time	Date and/or time picker	✅	✅
Photo	Camera capture with multiple photos	✅	✅ (queued)
Signature	Digital signature pad	✅	✅
Checkbox	Single or multiple selection	✅	✅
Dropdown	Select from predefined options	✅	✅
Rating	Star or numeric rating	✅	✅
Location	GPS coordinates capture	✅	✅
Barcode	Barcode/QR code scanner	✅	✅
Calculated	Auto-calculated from other fields	✅	✅

Form Schema Structure¶

interface FormTemplate {
  id: string;
  name: string;
  version: number;
  status: 'draft' | 'active' | 'archived';
  serviceTypes: string[];  // Which service types use this form
  sections: FormSection[];
  createdBy: string;
  createdAt: Date;
  modifiedBy?: string;
  modifiedAt?: Date;
}

interface FormSection {
  id: string;
  title: string;
  order: number;
  fields: FormField[];
  conditions?: ConditionalRule[];  // Show/hide section
}

interface FormField {
  id: string;
  type: FieldType;
  label: string;
  helpText?: string;
  required: boolean;
  order: number;
  validation?: FieldValidation;
  options?: SelectOption[];  // For dropdowns, checkboxes
  conditions?: ConditionalRule[];  // Show/hide field
  defaultValue?: any;
}

interface ConditionalRule {
  dependsOn: string;  // Field ID
  operator: 'equals' | 'notEquals' | 'contains' | 'greaterThan' | 'lessThan';
  value: any;
  action: 'show' | 'hide' | 'require';
}

interface FieldValidation {
  minLength?: number;
  maxLength?: number;
  min?: number;
  max?: number;
  pattern?: string;  // Regex
  customMessage?: string;
}

Key Actions¶

Action	Description	Required Permission
Create Form	Design new form template	`forms.create`
Edit Form	Modify existing template	`forms.update`
Publish Form	Activate form for use	`forms.publish`
Archive Form	Retire form from active use	`forms.archive`
Clone Form	Create copy of existing form	`forms.create`
Preview Form	Test form before publishing	`forms.view`
Export Form	Export form definition	`forms.export`

Vue.js Component Structure¶

src/views/forms/
├── FormsBuilderView.vue            # Main view container
├── components/
│   ├── FormTemplateList.vue        # Template list sidebar
│   ├── FormDesigner.vue            # Main designer canvas
│   ├── FormSection.vue             # Section container
│   ├── FormField.vue               # Field component
│   ├── FieldPalette.vue            # Draggable field types
│   ├── FieldEditor.vue             # Field property editor
│   ├── ConditionalEditor.vue       # Conditional logic editor
│   ├── ValidationEditor.vue        # Validation rule editor
│   ├── FormPreview.vue             # Form preview modal
│   └── FormSettings.vue            # Form metadata editor
├── composables/
│   ├── useFormBuilder.ts           # Form builder state
│   ├── useFormFields.ts            # Field management
│   ├── useDragDrop.ts              # Drag and drop logic
│   └── useFormValidation.ts        # Schema validation
└── types/
    └── form.types.ts               # TypeScript interfaces

Mobile Form Rendering (React Native)¶

// Dynamic form renderer for mobile
import { FormField } from './types';

function DynamicFormField({ field, value, onChange }: Props) {
  switch (field.type) {
    case 'text':
      return <TextInput value={value} onChangeText={onChange} />;
    case 'number':
      return <NumericInput value={value} onChange={onChange} />;
    case 'photo':
      return <PhotoCapture value={value} onChange={onChange} />;
    case 'signature':
      return <SignaturePad value={value} onChange={onChange} />;
    case 'dropdown':
      return <Picker options={field.options} value={value} onChange={onChange} />;
    case 'barcode':
      return <BarcodeScanner value={value} onChange={onChange} />;
    default:
      return null;
  }
}

ROLES.md - Role definitions and permissions
DISPATCH_ALERTS.md - Alert system documentation
INTEGRATION_ARCHITECTURE.md - Data source integrations
TECHNOLOGY_STACK.md - Technology decisions and component mapping
VUEJS_BEST_PRACTICES.md - Vue.js development standards
DEVELOPMENT_GUIDELINES.md - General development guidelines

Document Version: 1.1
Last Updated: January 2026
Next Review: April 2026

Application Views Documentation¶

Overview¶

Platform Summary¶

View Access By Role¶

Table of Contents¶

Navigation Architecture¶

Web Application Navigation Structure¶

Mobile Application Navigation Structure (Technician View)¶

Customer View¶

Purpose¶

Target Users¶

Platform & Technology¶

Layout Overview¶

Data Elements Displayed¶

Key Actions¶

Vue.js Component Structure¶

Store View¶

Purpose¶

Target Users¶

Platform & Technology¶

Layout Overview¶

Data Elements Displayed¶

Multi-Store Capability¶

Key Actions¶

Vue.js Component Structure¶

Billing View¶

Purpose¶

Target Users¶

Platform & Technology¶

Layout Overview¶

Data Elements Displayed¶

Invoice Workflow States¶

Key Actions¶

Vue.js Component Structure¶

Technician View¶

Purpose¶

Target Users¶

Platform & Technology¶

Layout Overview¶

Work Order Detail Screen¶

Data Elements Displayed¶

Offline-First Architecture¶

Technician Status Workflow¶

Key Actions¶

React Native Component Structure¶

Dispatch View¶

Purpose¶

Target Users¶

Platform & Technology¶

Layout Overview¶

Data Elements Displayed¶

Assignment Workflow¶

Key Actions¶

Real-Time Features¶

Vue.js Component Structure¶

Shared Components¶

Header Component¶

Sidebar Navigation¶

Notification Panel¶

UI/UX Standards¶

Design System¶

Responsive Breakpoints¶

Loading States¶

Error States¶

Data Refresh & Real-Time Updates¶

Refresh Strategy by View¶

WebSocket Events¶

Conflict Resolution¶

Accessibility Requirements¶

WCAG 2.1 AA Compliance¶

Keyboard Shortcuts (Web Views)¶

Configuration View¶

Purpose¶

Target Users¶

Platform & Technology¶

Layout Overview¶

Configuration Sections¶

Key Actions¶

Vue.js Component Structure¶

Exception Management View¶
